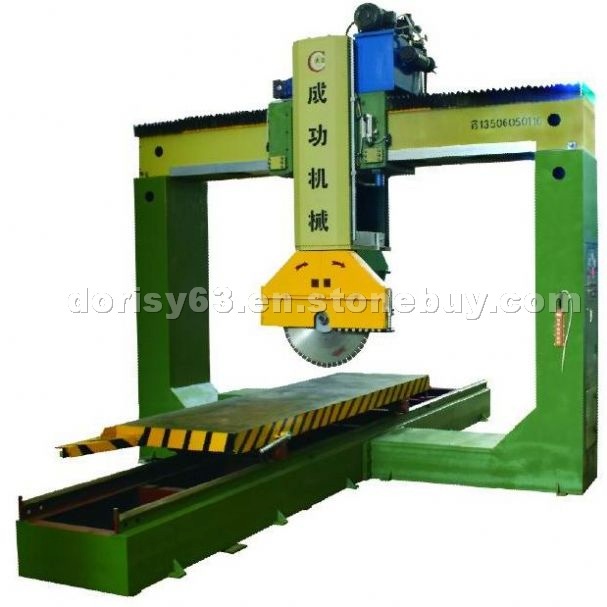

Stone Machine (Gantry-Type Mid Cutting Machine)

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1474820

• Place of Origin:

  China
• The structure is simple and reasonable , its cutting head can be tiltled down by 45 degree,its flexibility operational, accuracy positioning, improved product quality and yield, There are many speed of the machine available for customers to choose, the cutting speed can be arbitrarily adjust. There are automatic and manual controls for users to choose, the up and down and rotation are adopt hydraulic transmission, with less mechanical wear and improve the machinery life span, and reduce production costs.
  Max Process spec(L X W XH): 3100mm×800mm×350mm
  Diameter of Sawing Slice: 900mm~1200mm
  Angle of Blade Rotation: 90 o
  Spindle Rotate Speed: 1870/1630/1420 r/min Can be adjusted According to the blade
  Route of Spindle Lift: 550mm (1.80ft)
  Speed of Blade Decline: 3~30 mm/s Can be adjusted according to customer needs
  Route of Blade Transversely: 1600mm(5.25ft)
  Speed of Blade Transversely: 5~15 m/min Can be adjusted according to customer needs
  Route of Table: 3900mm(12.80ft)
  Working Speed of Worktable:5~15 m/min
  Main Motor Power: 22 kw Can be adjusted according to customer needs
  Main Power: 27.9 kw
  Overall Dimensions(L x W x H): 6000mm×3640mm×3370mm
  Total Weight: 5800kg
